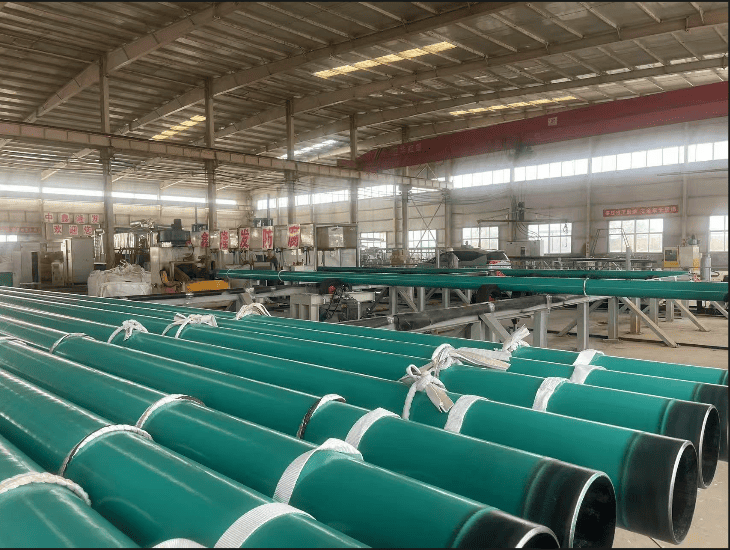

Fusion Bonded Epoxy Coated Steel Pipe, OD 60-3000 mm, BE Ends
Key Specifications / Features
 Model No.: LP-FBEP-2051126-01    Hits: 0
As a professional supplier of custom fusion bonded epoxy (FBE) coated steel pipes in China, we provide high-quality carbon steel piping solutions engineered for superior corrosion protection and long-term performance. Our product range includes API 5L Grade B and X42–X80 line pipe, as well as ASTM A53 Grade A/B and ASTM A106 Grade A/B/C seamless and welded steel pipes. Available in outside diameters from 60 mm to 3000 mm with BE (beveled end) configurations, each pipe is coated with a durable FBE layer to ensure excellent adhesion, chemical resistance, and service reliability across oil, gas, water, and industrial applications.

Detail Information

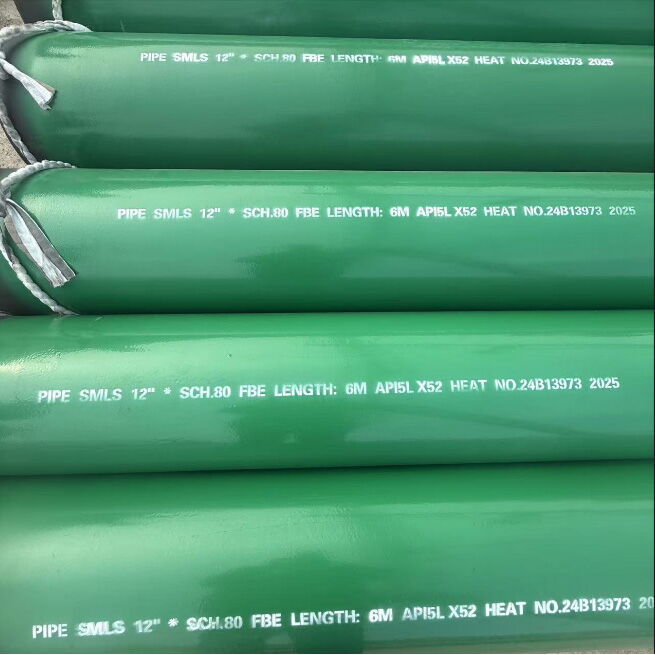

Product Name: FBE Coated Pipe, Fusion Bonded Epoxy Coated Pipe, Single-Layer FBE Pipe, Epoxy Coated Steel Pipe

Specifications:
Outer Diameter: 60 mm - 3000 mm
Wall Thickness: 5 mm - 40 mm
Standard and Steel Grade:
API 5L: Grade B, X42-X80 (PSL1/PSL2)
ASTM A53: Grade A, Grade B
ASTM A106: Grade A, Grade B, Grade C
AWWA C200/C210: For water transmission

Ends:
Coated Plain Ends: Standard
Bevelled Ends: For welding (field joint coating required)
Flange-Ready: Pre-coated with flange connection area reserved

Surface Treatment:
Base Preparation: Abrasive blast cleaning (Sa 2.5, ISO 8501)
Primer: Optional Chromate-free epoxy primer for enhanced adhesion
Topcoat: Single-layer FBE (Standard), Dual-layer FBE (High-Temperature / Abrasion Resistance)
Coating Color: Green, Beige, or Custom
Temperature Resistance: -40°C to 100°C
Fusion Bonded Epoxy Coated Steel Pipe
